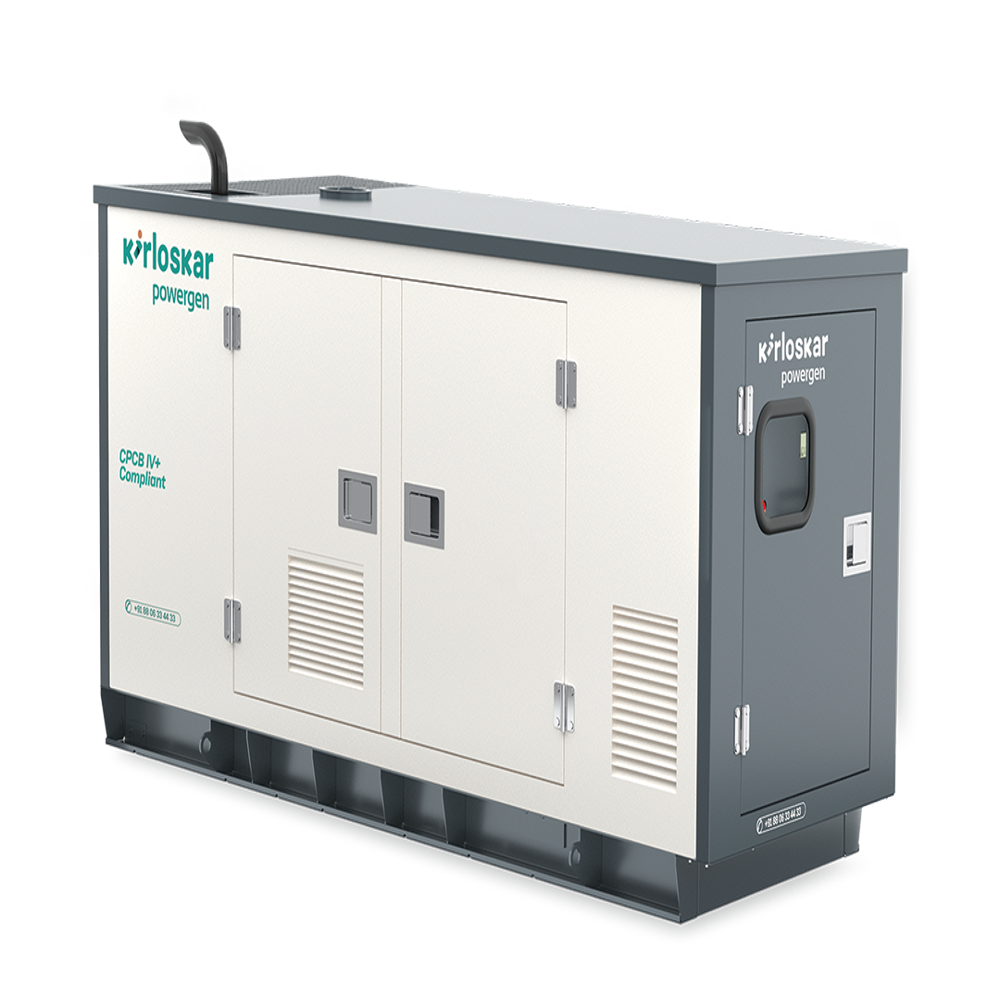

10 kVA Kirloskar Genset About
Kirloskar 10 kVA generator is engineered for maximum efficiency, delivering robust power output with a lightweight design. Equipped with established features such as naturally aspirated engine, and high-strength build, this diesel genset meets the stringent CPCB IV+ norms, ensuring low emissions and environmental safety.

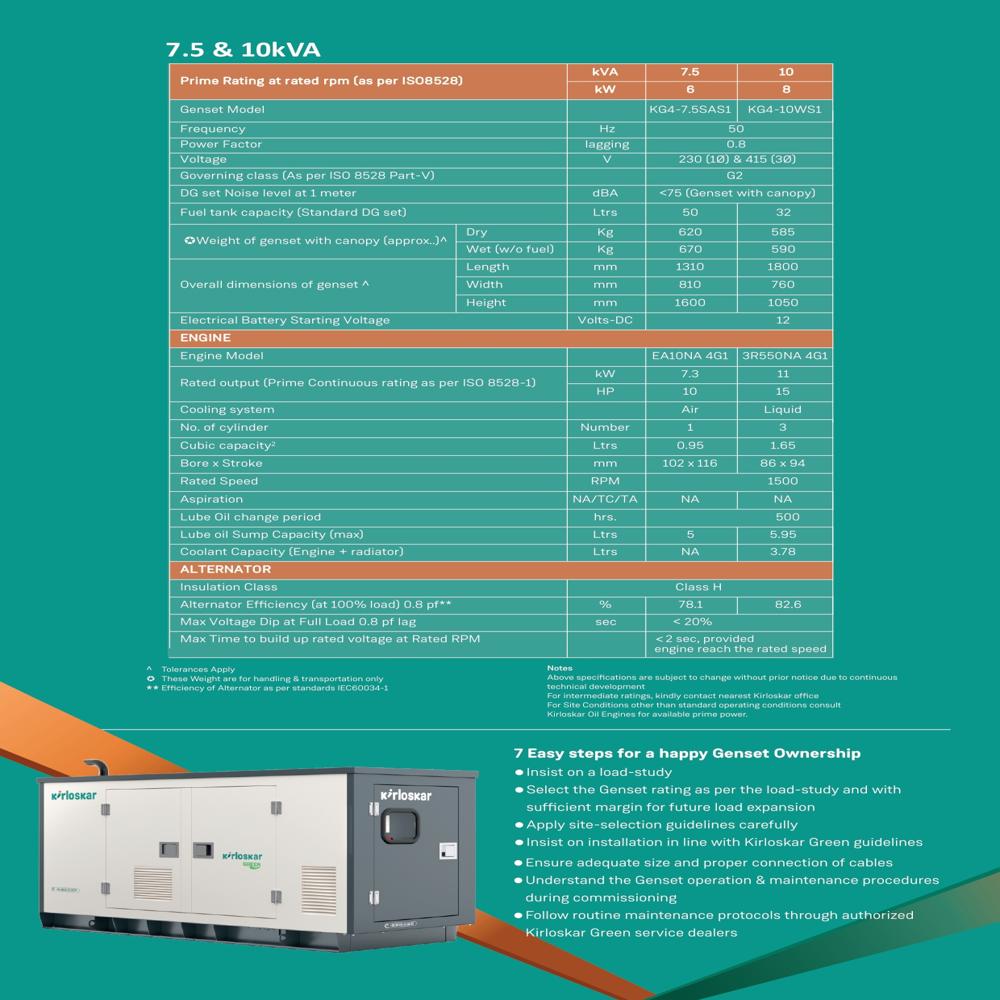

Technical Specification
- Prime Rating at rated rpm (as per ISO8528)1-10 kVA
- Prime Rating at rated rpm (as per ISO8528)1-8 kW
- Genset Model-KG4-10WS1
- Frequency-50
- Power Factor-0.8
- Voltage-230 (1) & 415 (3)
- Governing class (As per ISO 8528 Part-V)-G2
- Noise level-<75 DBA
- Weight of genset with canopy-
Dry-585 kg
Wet-590 Kg
- Overall dimensions of genset
Length-1800 mm
Width-760 mm
- Height-1050 mm
- Electrical Battery Starting Voltage-12 Volts-DC
- Engine Model-3R550NA 4G1
- Rated output (Prime Continuous rating as per ISO 8528-1)-11 kW
- Rated output (Prime Continuous rating as per ISO 8528-1)-15 HP
